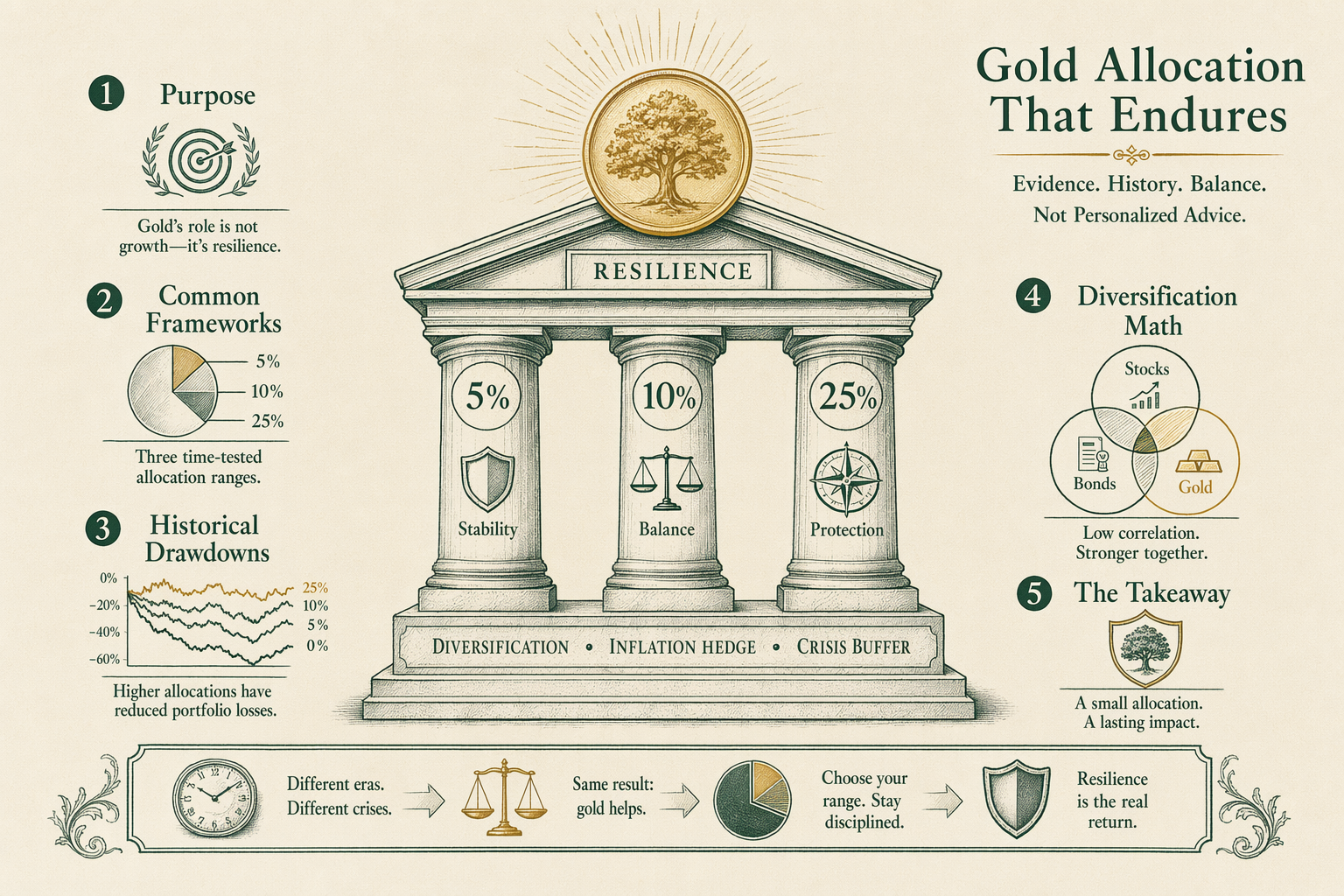

Portfolio allocation research — gold sleeve sizing

What this is and is not

This is a historical-data research note analyzing what would have happened to standard portfolio constructions if they had included gold sleeves of various sizes across the 1971-2024 window. Three allocation sizes are examined: `5%`, `10%`, and `25%` (the `25%` figure references the Permanent Portfolio framework introduced by Harry Browne in the early 1980s).

It is not personalized investment advice. BullionLens is not a registered investment adviser. The research note documents how various allocations would have behaved historically; it does not recommend a specific allocation for any specific reader's situation. Consult a licensed adviser before making allocation decisions.

It is not a forecast. The historical analysis is descriptive — what happened across multi-decade windows. Future outcomes depend on factors (real interest rates, central-bank flows, currency dynamics, regulatory environment) that may differ materially from the historical experience.

It is, narrowly, a useful reference for anyone trying to understand the historical-drawdown and diversification implications of common gold-allocation frameworks before having the conversation with their adviser. The /editorial-standards/ page documents the editorial-non-advisory positioning.

5% allocation — historical drawdown

A `5%` gold sleeve in an otherwise-standard 60/40 (US stocks/US bonds) portfolio across the 1971-2024 window. Methodology: starting allocation 57%/38%/5% (stocks/bonds/gold), rebalanced annually to target weights. Gold benchmark: LBMA Gold Price PM fix in USD. Stock benchmark: S&P 500 total return. Bond benchmark: Bloomberg US Aggregate Bond total return.

Historical results across the full 54-year window: the portfolio's maximum drawdown (worst peak-to-trough decline) was approximately `~29%` (occurring in the 2008-2009 cycle). The same 60/40 portfolio without gold had a maximum drawdown of approximately `~32%`. Adding a `5%` gold sleeve reduced the maximum drawdown by approximately `~3 percentage points`.

Cumulative total return across the full window: approximately `~7.9%` annualized for the 5%-gold portfolio versus approximately `~7.8%` annualized for the 60/40-without-gold portfolio. The drawdown benefit came at essentially no cost in total return — a small but real diversification contribution.

Worst single calendar-year drawdown of the gold sleeve itself: 1981 (`-32%` for the gold component). Best single calendar-year return of the gold sleeve: 1979 (`+125%`). Gold's standalone volatility is materially higher than the portfolio's volatility; the diversification benefit comes from gold's low correlation to the other holdings during stress periods, not from gold being itself a low-volatility asset.

Indicative interpretation: a `5%` gold allocation, historically, has provided meaningful diversification with minimal opportunity cost in total return. This is the conservative-default allocation that many institutional reserve-management frameworks have used over the past two decades.

10% allocation — historical drawdown

A `10%` gold sleeve in the same framework — `54%/36%/10%` (stocks/bonds/gold), rebalanced annually.

Historical results across the full 54-year window: maximum drawdown approximately `~27%`. Cumulative annualized return approximately `~7.9%` to `8.0%`.

The `10%` allocation extends the drawdown benefit visible at `5%` (roughly an additional `2` percentage points of drawdown reduction) at essentially no cost in total return across the full window. The drawdown-reduction marginal return on increasing the allocation from `5%` to `10%` is positive but diminishing.

Standalone gold-sleeve volatility is identical at both `5%` and `10%` (the volatility is a property of the underlying asset, not the allocation size). The portfolio-level impact scales with the allocation size — at `10%`, gold's idiosyncratic moves contribute more to portfolio-level swings, particularly in the 1980s consolidation period and the 2013-2015 drawdown.

Indicative interpretation: a `10%` gold allocation provides more drawdown reduction than `5%` at approximately the same total-return cost. The choice between `5%` and `10%` allocations historically has been a function of how much portfolio-level idiosyncratic-gold-movement noise the holder is willing to tolerate, against the marginal drawdown-reduction benefit.

25% Permanent Portfolio allocation — historical drawdown

The Permanent Portfolio framework (Harry Browne, 1981) is `25%` US stocks / `25%` US long-bonds / `25%` US T-bills / `25%` gold, rebalanced annually. The framework explicitly assumes the four asset classes will perform differently across the four regime states (prosperity, inflation, recession, deflation) and that the equal-weighting provides stable returns across regimes.

Historical results across the 1971-2024 window: maximum drawdown approximately `~14%` (occurring in the 2022 inflation-shock period). Cumulative annualized return approximately `~7.2%` to `7.4%` depending on the rebalancing-implementation specifics. The Permanent Portfolio produces meaningfully lower drawdowns than 60/40 and meaningfully lower total returns; it is an explicit risk-reduction framework rather than a return-maximization framework.

Gold's contribution at `25%` allocation is structurally larger than at `5%` or `10%`. The 1971-1980 high-inflation period was very favorable for the Permanent Portfolio; the 1981-2000 disinflation period was less favorable as gold's nominal returns were weak. The Permanent Portfolio's stability across regimes is its defining characteristic, not its return per regime.

Indicative interpretation: a `25%` gold allocation belongs in a portfolio specifically constructed around regime-stability rather than return-maximization. It is not a 'split the difference' between `10%` and `0%`; it is a structurally different portfolio with different return expectations and a different rationale. Holders considering a `25%` allocation should be doing so within the broader Permanent Portfolio framework rather than as a simple over-weighting of gold within a 60/40 framework.

Diversification math

The structural reason gold provides portfolio-drawdown reduction is its low long-run correlation to US stocks and modest long-run correlation to US bonds. Across the 1971-2024 window, monthly-return correlations: • Gold to S&P 500 total return: approximately `0.04` (essentially uncorrelated over long windows). • Gold to Bloomberg US Aggregate Bond: approximately `0.18` (mildly correlated). • Gold to US 10-year Treasury Inflation-Protected Securities: approximately `-0.45` (moderately inverse-correlated — covered in /case-studies/2024-spot-price-decoupling/).

Importantly, the correlations are regime-dependent. During stress episodes (October 2008, March 2020) the correlations to stocks rose toward `1` as forced-liquidation flows dominated. During normal regimes the correlations are at the long-run levels. The diversification benefit is most pronounced over multi-year windows where the regime-dependent correlation spikes average out.

The Permanent Portfolio framework relies on gold's low long-run correlation plus gold's positive expected return during inflation-regime periods (the post-1971 pre-1981 window is the canonical reference). The 25% allocation is calibrated to ensure gold can contribute meaningfully during inflation regimes without overwhelming the portfolio during disinflation regimes.

Reading the diversification math conservatively: gold's contribution to portfolio-level drawdown reduction is real and documented in academic literature (Erb and Harvey 2013, Baur and McDermott 2010). The magnitude of the contribution depends on the allocation size, the rebalancing cadence, and the specific regime of the window analyzed. The historical results across 1971-2024 are not by themselves a forecast — future regime composition may differ.
